Massachusetts 527 CMR Code ComplianceBeckett & Granby Equipment KnowledgeWorcester County Coverage

Featured Equipment & Installations

Each project highlights key equipment components, code-compliant safety features, and proper installation practices for New England homes.

Weil-McLain Ultra Oil three-pass cast-iron boiler equipped with Carlin burner, mounted electrical disconnect, and overhead 7-zone copper hydronic distribution manifold featuring Taco 007e ECM circulator pumps and full-port isolation valves in a Massachusetts basement
High-Efficiency Boiler & Multi-Zone Hydronics
Worcester County, MAProject #1

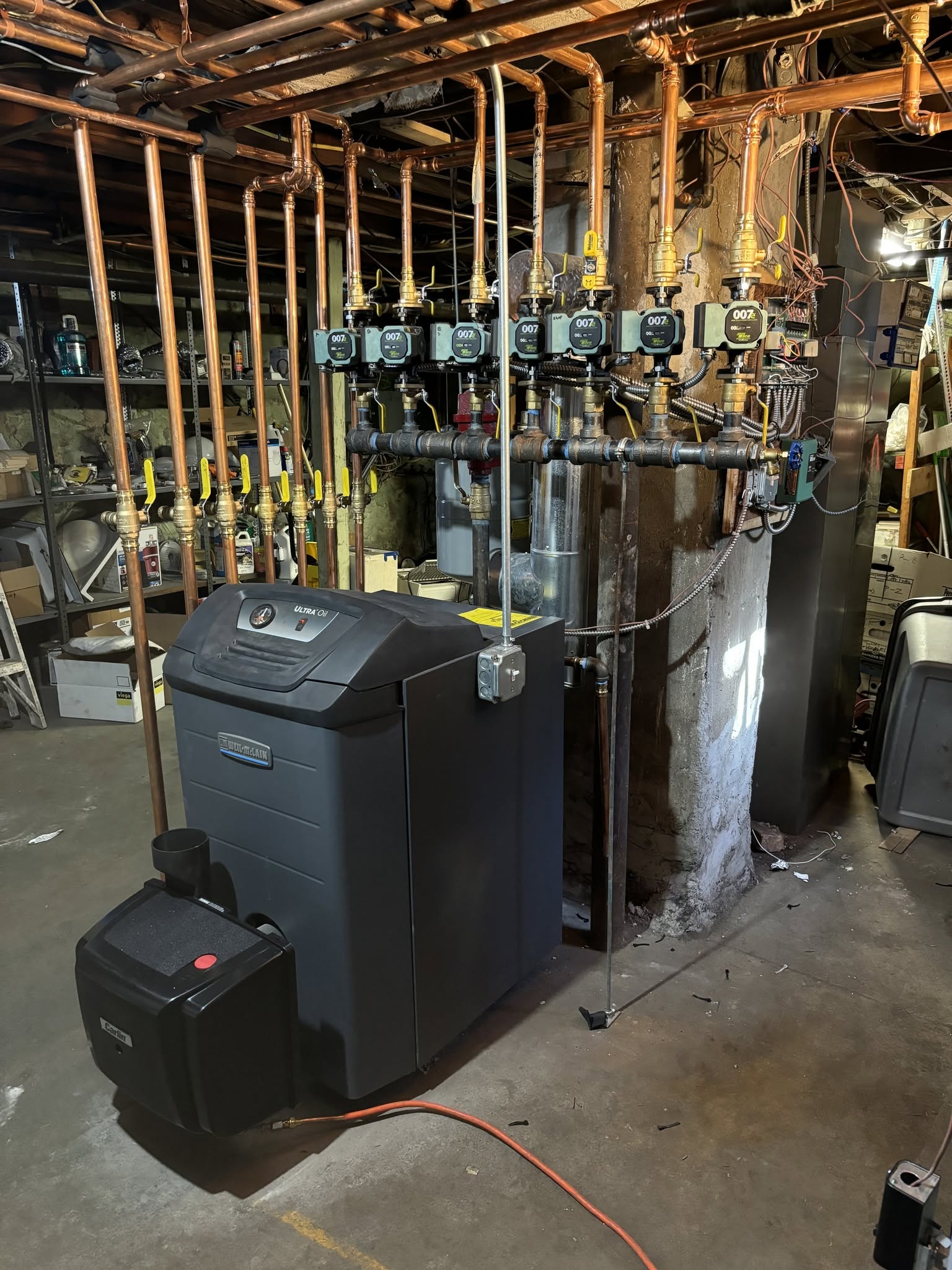

Weil-McLain Ultra Oil Boiler with Carlin Burner & 7-Zone Taco 007e Manifold

Masterpiece multi-zone residential hydronic heating installation centered on a premium Weil-McLain Ultra Oil high-efficiency cast-iron boiler paired with a Carlin quiet-combustion oil burner. Features an overhead 7-zone distribution header powered by Taco 007e ECM circulator pumps with individual purge and isolation valves for zoned comfort across the home.

Equipment & Piping Details

  • Weil-McLain Ultra Oil high-efficiency 3-pass cast-iron oil boiler with sleek jacket
  • Carlin advanced clean-combustion residential oil burner with sound-dampening cover
  • 7-zone precision Taco 007e high-efficiency ECM hydronic circulator pumps
  • Rigid copper supply and return distribution lines with ProPress mechanical fittings
  • Black-iron supply manifold with individual zone isolation ball valves and drain purgers
  • Top-mounted tridicator temperature/pressure gauge and emergency electrical disconnect switch

Safety & Code Highlights

  • Individual zone isolation valves enable rapid servicing without draining entire heating system
  • Carlin sealed burner housing reduces operating decibels while maintaining clean combustion
  • Wired to Massachusetts electrical and oil burner safety codes with dedicated service disconnect
Need service on similar equipment?Call for Service: (508) 936-8957

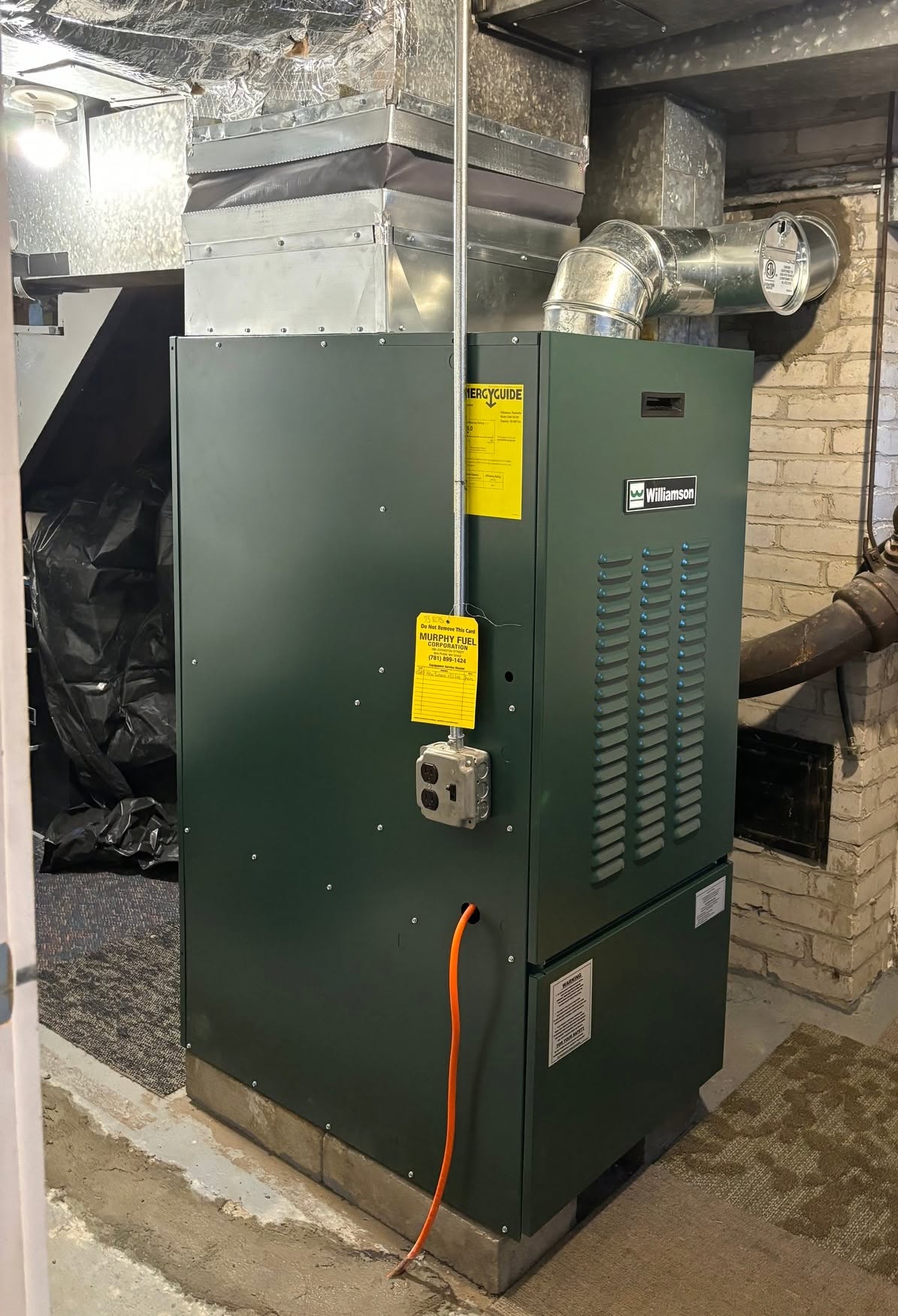

Forest green Williamson residential warm air oil furnace installed on elevated concrete pad with custom galvanized supply air transition plenum, vibration canvas collar, electrical service disconnect, yellow EnergyGuide label, and official heating service inspection tag
Residential Oil Furnace Installation
Worcester, MAProject #2

Williamson Warm Air Oil Furnace with Sheet Metal Plenum & Service Inspection Tag

Precision residential forced warm air oil furnace installation in a Worcester basement. Features an insulated forest green Williamson cabinet, custom fabricated galvanized supply air transition with vibration isolator collar, elevated concrete housekeeping pad, heavy galvanized smoke pipe breach, and an official signed Massachusetts heating service inspection tag.

Equipment & Piping Details

  • Williamson residential oil-fired forced warm air furnace with insulated green cabinet
  • Custom galvanized sheet metal supply air plenum with vibration-dampening canvas connector
  • Elevated concrete housekeeping pad protecting cabinet from basement floor moisture
  • Galvanized round smoke pipe breach with barometric draft regulator to masonry chimney
  • Rigid electrical conduit with unit-mounted emergency service disconnect switch and outlet
  • Safety EnergyGuide performance documentation and municipal inspection tag affixed

Safety & Code Highlights

  • Canvas vibration isolator stops blower motor harmonics and duct rattling across living spaces
  • Elevated concrete equipment footing prevents water contact and foundation dampness
  • Official heating service record tag attached confirming safety check and burner draft testing
Need service on similar equipment?Call for Service: (508) 936-8957

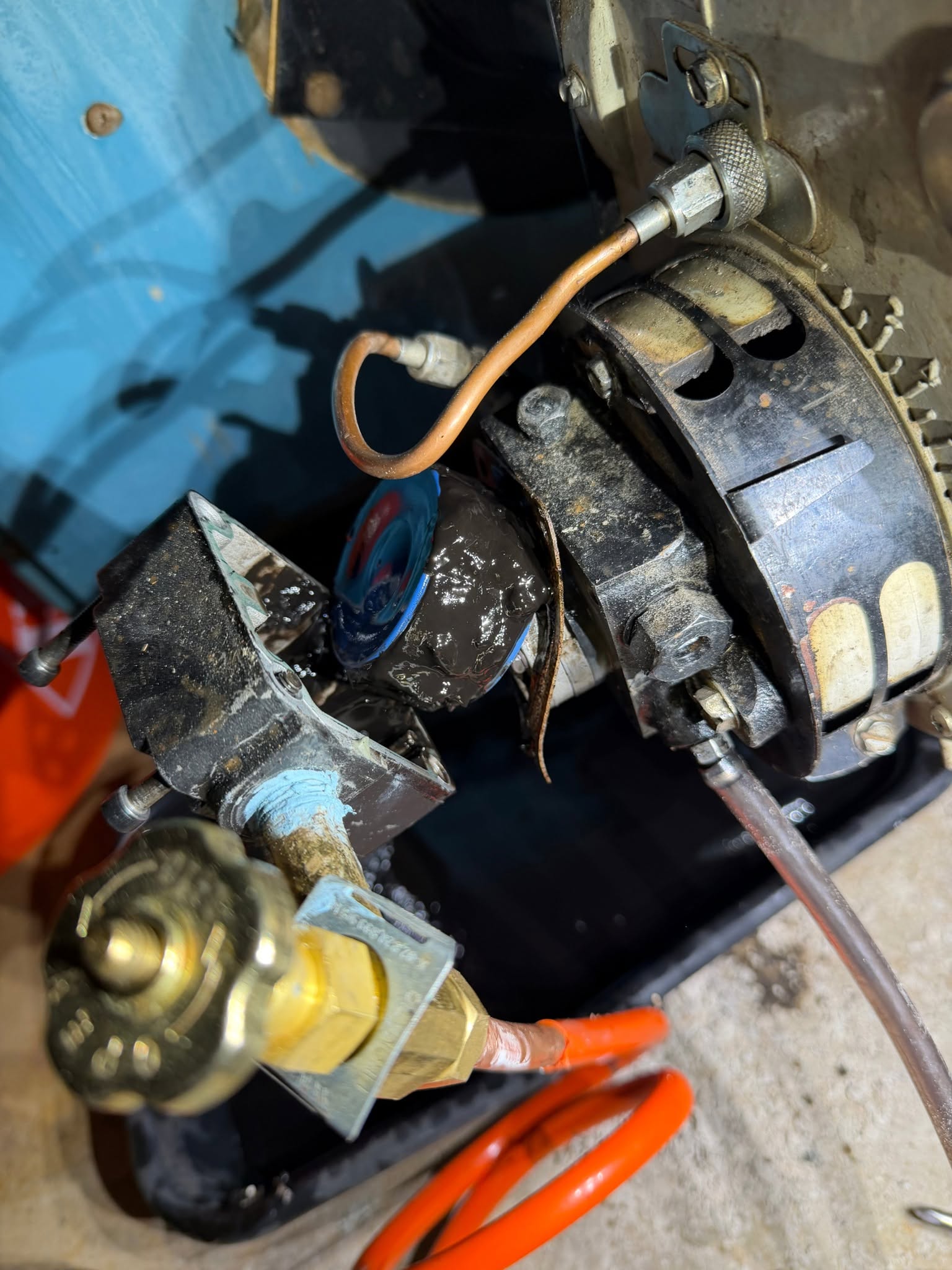

Disassembled oil burner fuel pump internal strainer basket coated in thick black petroleum sludge and sediment, demonstrating severe fuel line restriction before ultrasonic cleaning and nozzle replacement
Emergency Troubleshooting & Fuel Issues
Worcester, MAProject #3

Severe Fuel Oil Sludge Contamination & Burner Pump Strainer Cleanout

Emergency service call on an oil burner experiencing intermittent lockouts and weak flame pressure. Disassembly of the fuel unit revealed heavy accumulation of black tank sludge and bio-sediment suffocating the internal pump screen strainer, starving the combustion head of heating oil.

Equipment & Piping Details

  • Beckett / Suntec oil burner fuel pump unit disassembled for internal inspection
  • Heavily choked internal mesh strainer basket clogged with thick fuel tank sediment
  • Brass manual fuel shutoff valve and copper feed tubing service
  • Electric burner motor coupling and ignition assembly evaluation
  • Complete solvent wash, fresh filter element replacement, and high-pressure system flush
  • Combustion nozzle replacement calibrated to original manufacturer GPH rating

Safety & Code Highlights

  • Prevents fuel starvation cavitation and catastrophic burner pump seizure
  • Restores proper fuel atomization spray pattern, preventing unburned oil accumulation
  • Massachusetts compliant Firomatic thermal shutoff inspected on fuel intake line
Need service on similar equipment?Call for Service: (508) 936-8957

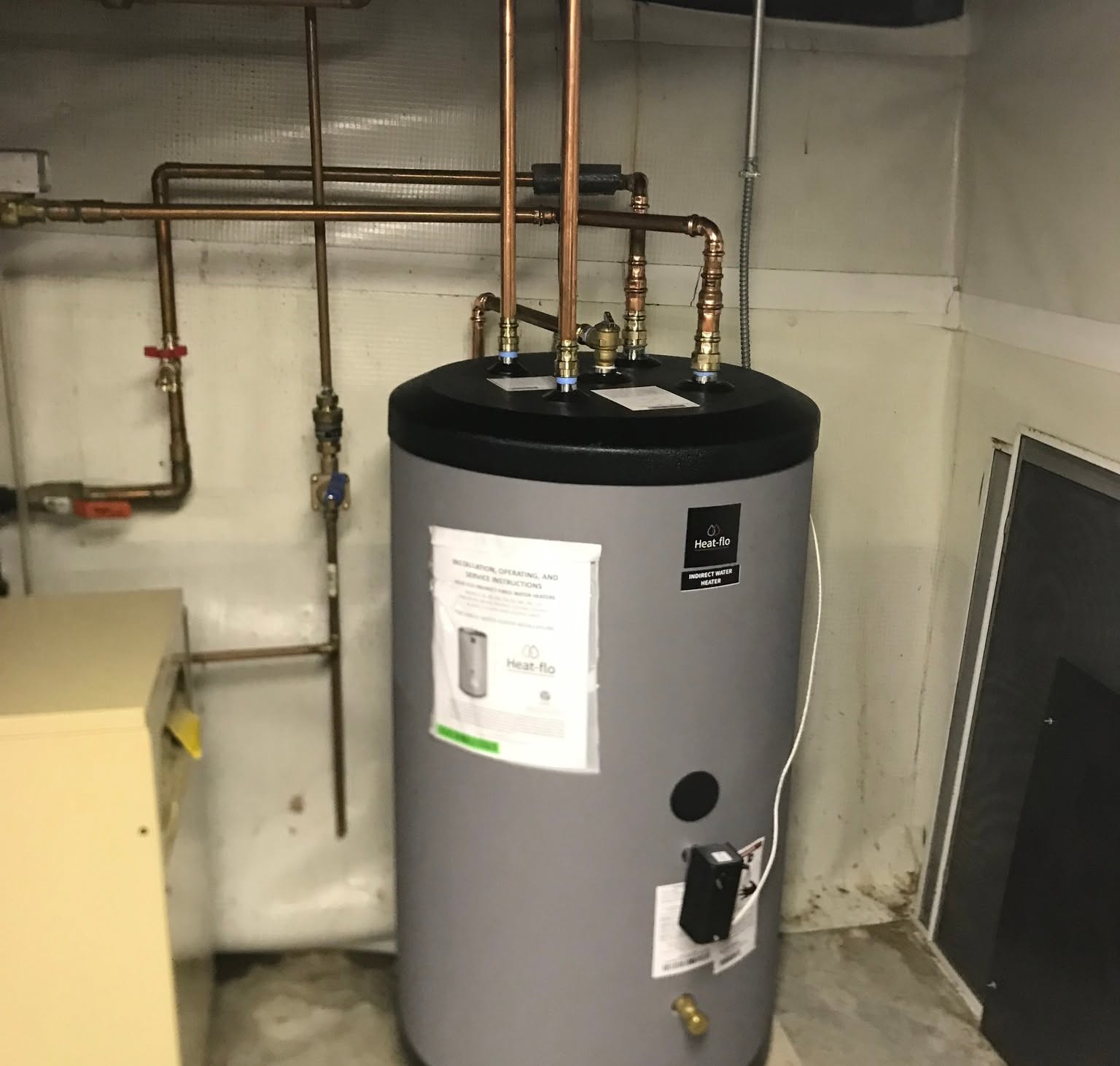

Heat-Flo high-efficiency indirect-fired water heater tank piped in rigid copper with ProPress fittings, integrated aquastat controller, isolation ball valves, and boiler hydronic loop in a clean residential basement
Domestic Hot Water & Hydronics
Worcester County, MAProject #4

Heat-Flo Stainless Steel Indirect Water Heater with Copper Press Piping

High-output domestic hot water upgrade featuring a durable Heat-Flo indirect-fired water heater paired directly with the home's primary boiler system. Cleanly piped using rigid copper tubing with press connections, isolation ball valves, and a dedicated temperature aquastat for rapid recovery times.

Equipment & Piping Details

  • Heat-Flo high-efficiency stainless steel indirect water heater storage tank
  • Dedicated boiler priority hydronic coil circuit with isolation shutoff valves
  • Precision copper tubing distribution with commercial-grade press fittings
  • Tank-mounted temperature aquastat controller wired for domestic hot water priority
  • Cold water supply isolation valve and boiler loop drain valve
  • Thermal expansion safety relief piping directed safely to the floor

Safety & Code Highlights

  • Stainless steel heat exchanger prevents corrosion and delivers long service life
  • Boiler priority switching ensures ample domestic hot water during peak morning demand
  • Pressure and temperature relief valve installed to Massachusetts plumbing code
Need service on similar equipment?Call for Service: (508) 936-8957

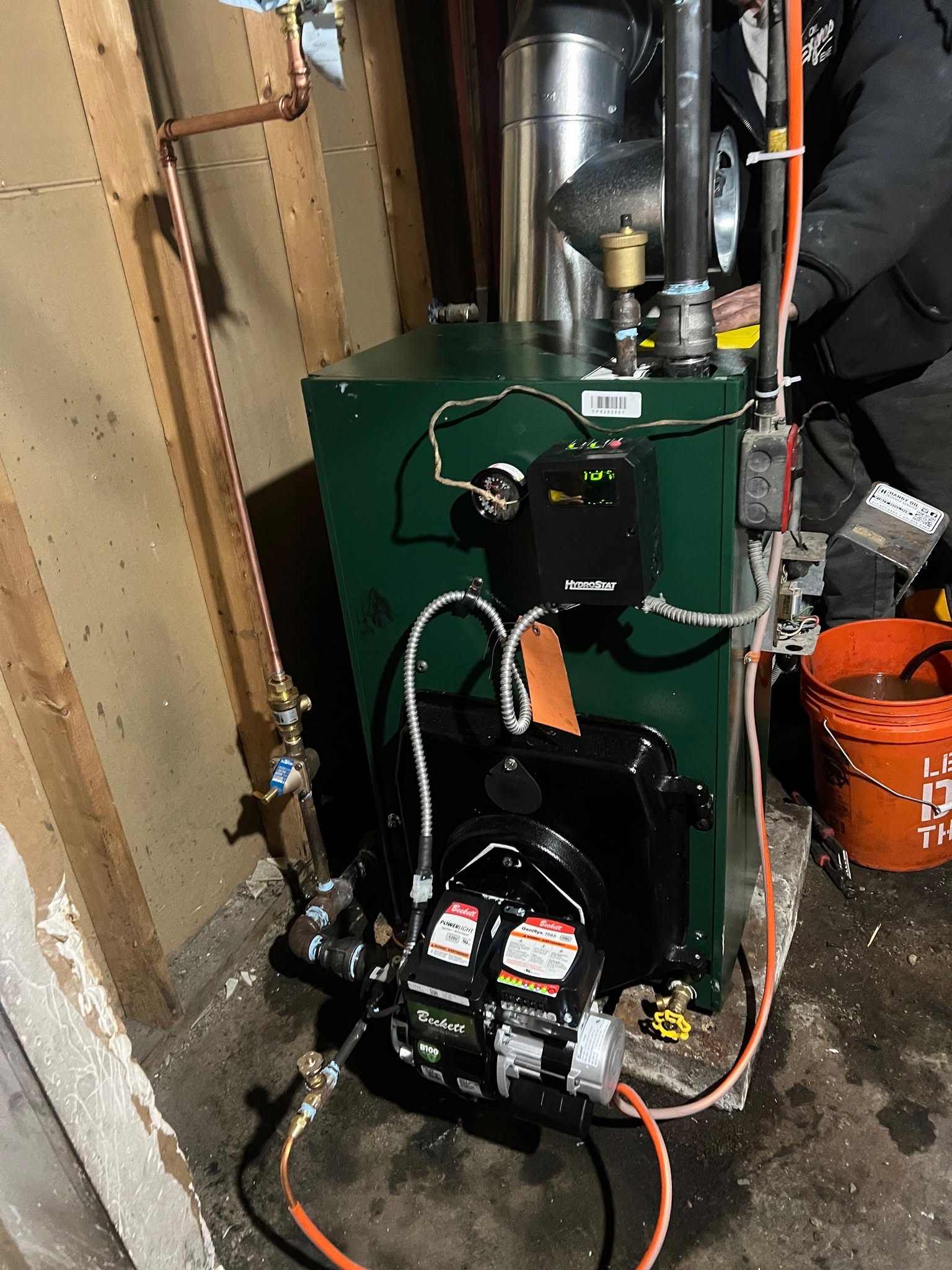

Forest green cast-iron residential oil boiler installation with digital HydroStat 3250-Plus controller displaying operating temperature, Beckett GeniSys burner, copper hydronic return, and galvanized smoke flue
Residential Boiler Installation
Worcester, MAProject #5

Williamson Cast-Iron Oil Boiler with HydroStat 3250-Plus & Beckett Burner

Clean basement replacement featuring a compact green cast-iron oil boiler fitted with a Beckett flame-retention burner and an advanced digital HydroStat 3250-Plus temperature limit and low-water cutoff. Piped with rigid copper return lines, drain manifold, and barometric flue regulator.

Equipment & Piping Details

  • High-efficiency sectional cast-iron oil boiler with insulated forest green jacket
  • Beckett clean-burn oil burner powered by GeniSys primary safety control
  • Hydrolevel HydroStat 3250-Plus smart temperature control with digital display
  • Automatic boiler air vent scooper on vertical boiler supply riser
  • Safety drain valve and low-profile concrete housekeeping equipment pad
  • Heavy-gauge galvanized smoke pipe with draft regulator connecting to masonry chimney

Safety & Code Highlights

  • Electronic low-water cutoff (LWCO) protects cast-iron sections from dry firing
  • Thermal emergency Firomatic safety switch wired directly above burner assembly
  • Complies with Massachusetts 527 CMR 1.00 burner installation safety standards
Need service on similar equipment?Call for Service: (508) 936-8957

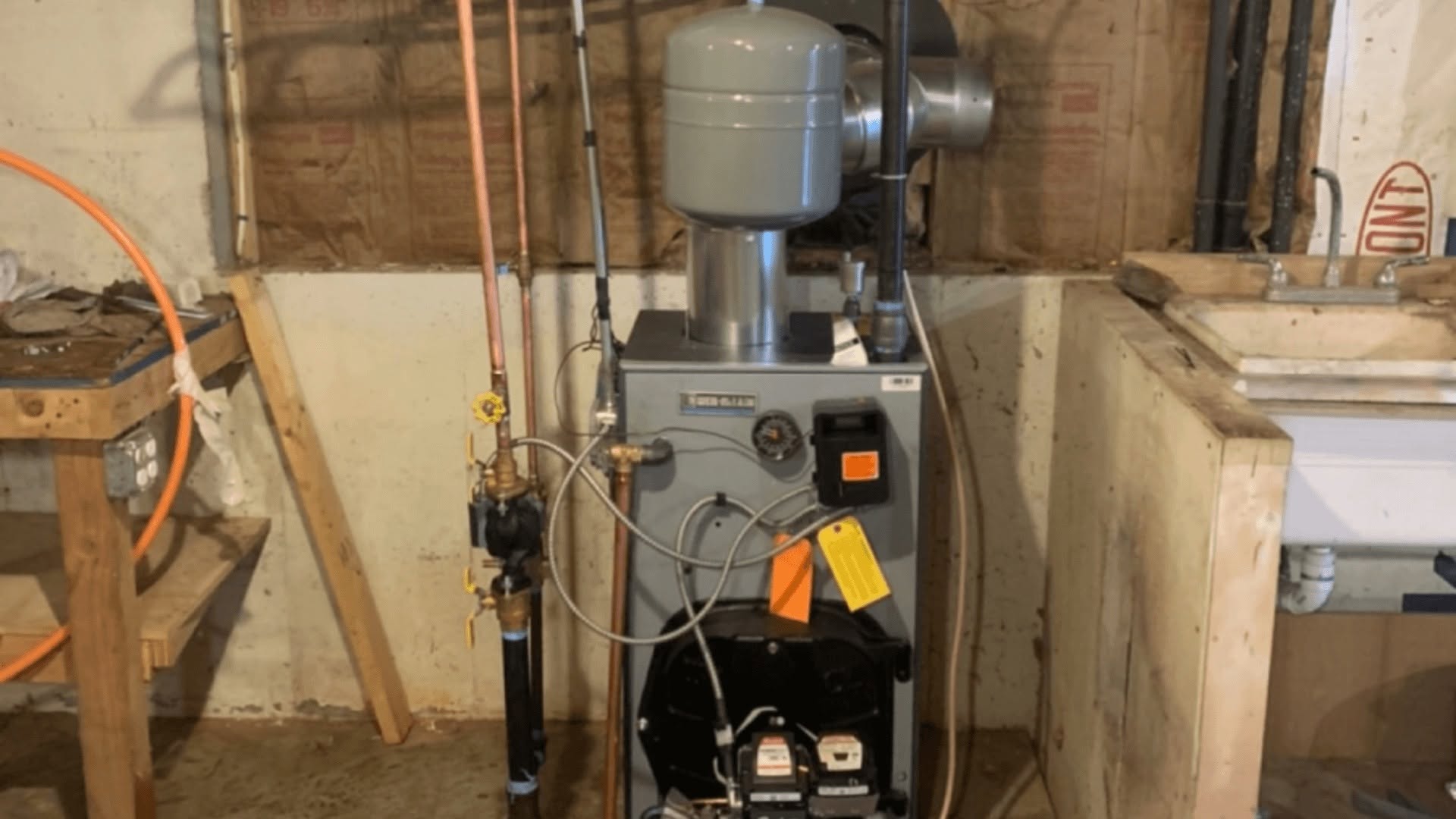

Weil-McLain gray cast-iron oil boiler with Beckett GeniSys burner, overhead gray hydronic diaphragm expansion tank, Taco circulator pump, pressure-temperature gauge, and official service inspection tags
Residential Boiler Installation
Central MassachusettsProject #6

Weil-McLain Oil-Fired Boiler with Top Expansion Tank & Dual Service Tags

Full residential heating plant installation featuring a durable Weil-McLain oil boiler, Beckett clean-combustion burner with electronic safety primary control, vertical diaphragm expansion tank mounted on black-iron header, and Taco circulator pump with dual isolation valves.

Equipment & Piping Details

  • Weil-McLain cast-iron residential oil heating boiler in classic gray finish
  • Beckett GeniSys advanced oil burner with cad cell flame sensor
  • Overhead hydronic diaphragm expansion tank piped to air separator header
  • Taco high-performance hydronic circulator pump with service isolation flanges
  • Dual pressure/temperature tridicator gauge and automatic boiler water feeder
  • Heavy galvanized smoke flue connected to basement chimney breach

Safety & Code Highlights

  • Official Massachusetts oil burner inspection and service tags attached and signed
  • Proper expansion tank volume prevents pressure relief valve weeping during high firing
  • ASME-rated 30 PSI pressure relief valve piped downward per safety codes
Need service on similar equipment?Call for Service: (508) 936-8957

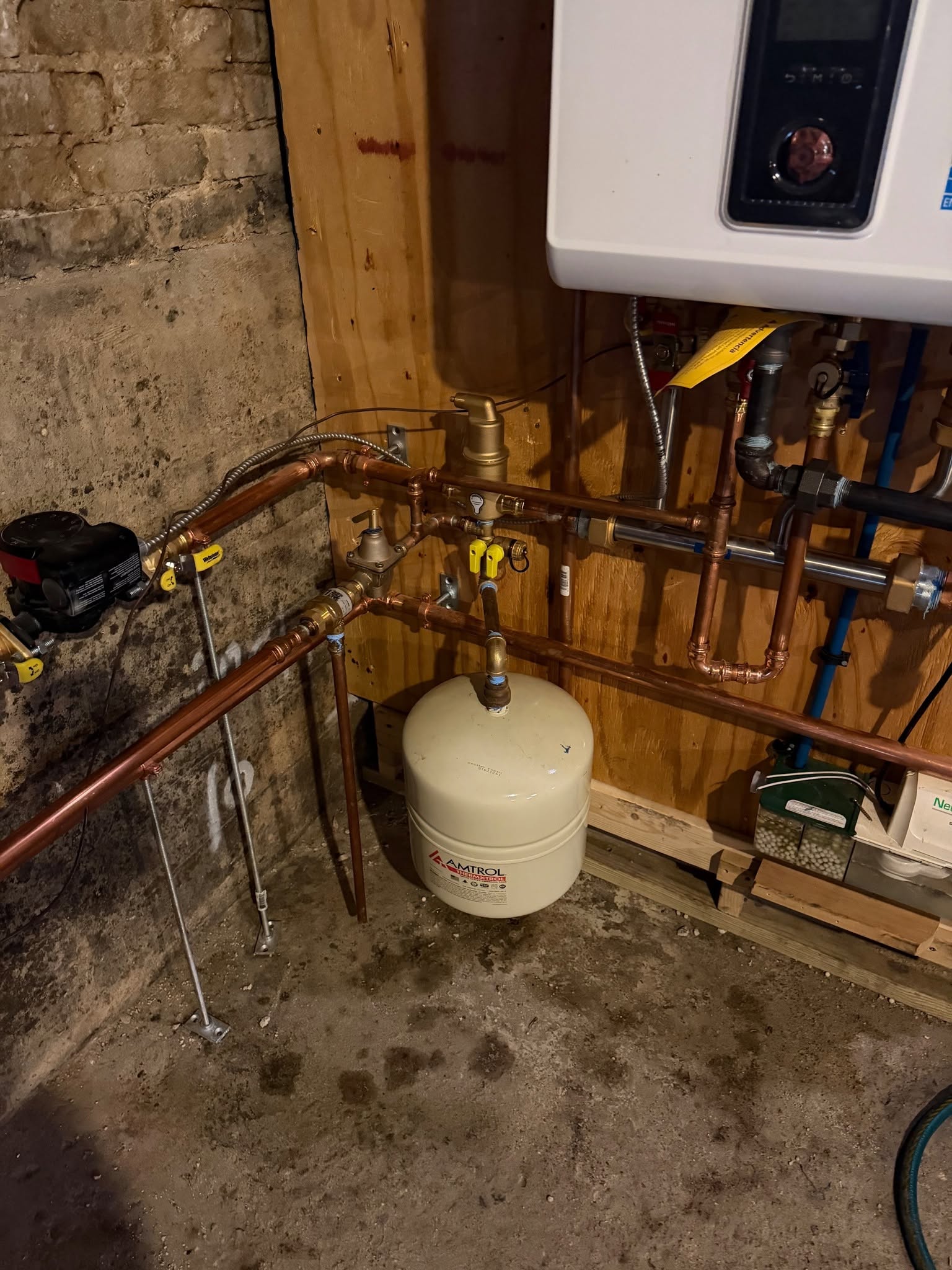

Amtrol Therm-X-Trol hydronic expansion tank mounted beneath wall-hung condensing boiler, showing copper press piping manifold, Spirovent air eliminator, pressure reducing fill valve, and acid condensate neutralizer
Hydronic Controls & Water Management
Worcester Area, MAProject #7

Amtrol Therm-X-Trol Hydronic Station with Backflow & Condensate Neutralizer

Precision hydronic piping manifold serving a high-efficiency wall-hung boiler system. Features an Amtrol Therm-X-Trol expansion vessel, brass air separator, pressure-reducing auto-fill valve with dual check backflow preventer, and an inline acid condensate neutralizer to protect basement drain piping.

Equipment & Piping Details

  • Amtrol Therm-X-Trol pre-pressurized hydronic expansion tank
  • Brass microbubble air eliminator / air scooper on main heating loop
  • Watts pressure reducing auto-fill valve with integral backflow preventer
  • Commercial-grade copper press-fit piping supported by floor and wall unistrut anchors
  • Acid condensate neutralizer tank with calcium carbonate media protecting drain lines
  • Yellow handle full-port isolation purge valves on hydronic branches

Safety & Code Highlights

  • Backflow prevention protects domestic potable water supply from boiler water contamination
  • Neutralizes corrosive acidic boiler flue condensate before discharge into local plumbing
  • Precision unistrut floor stands eliminate mechanical vibration and copper strain
Need service on similar equipment?Call for Service: (508) 936-8957

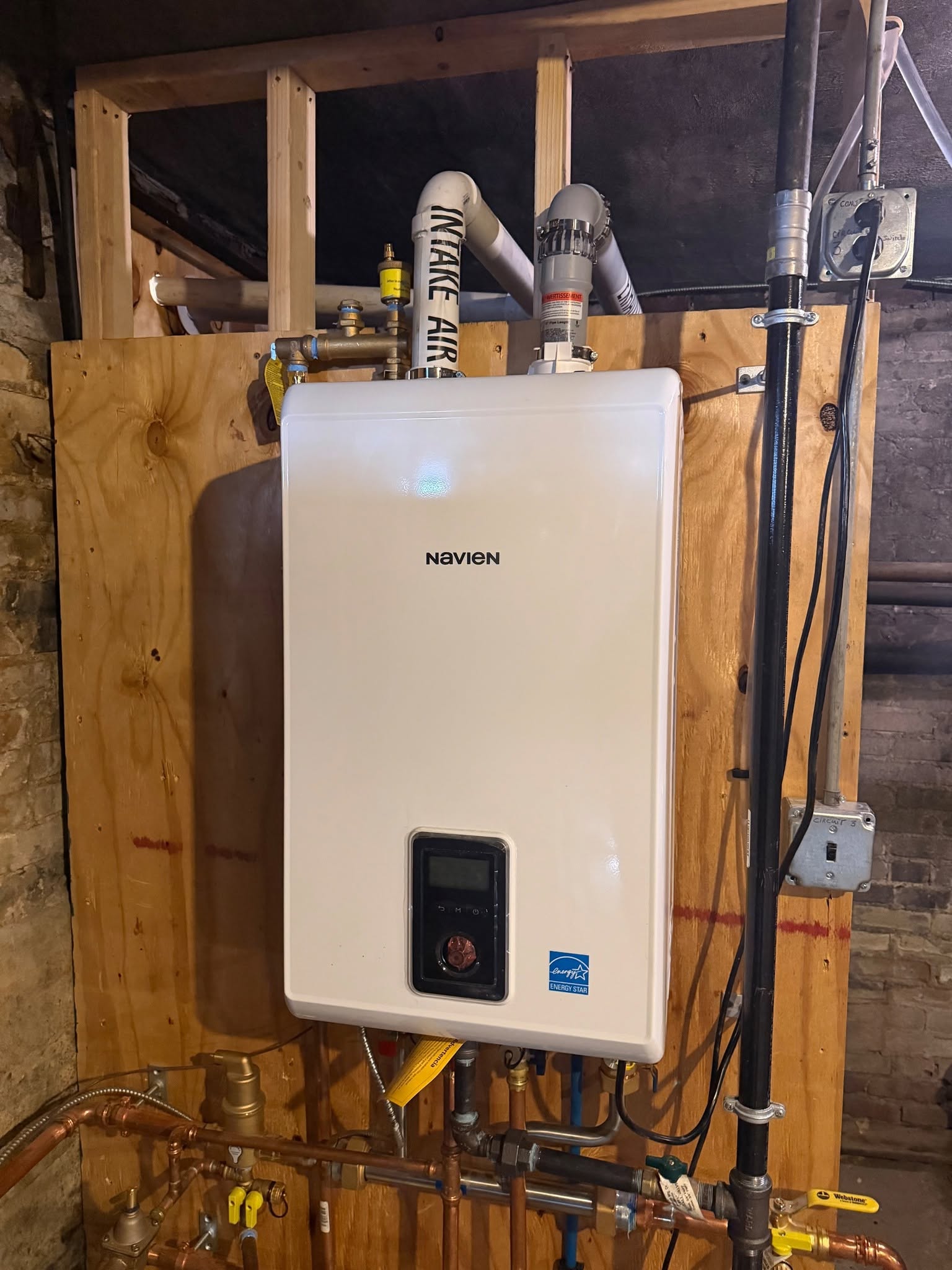

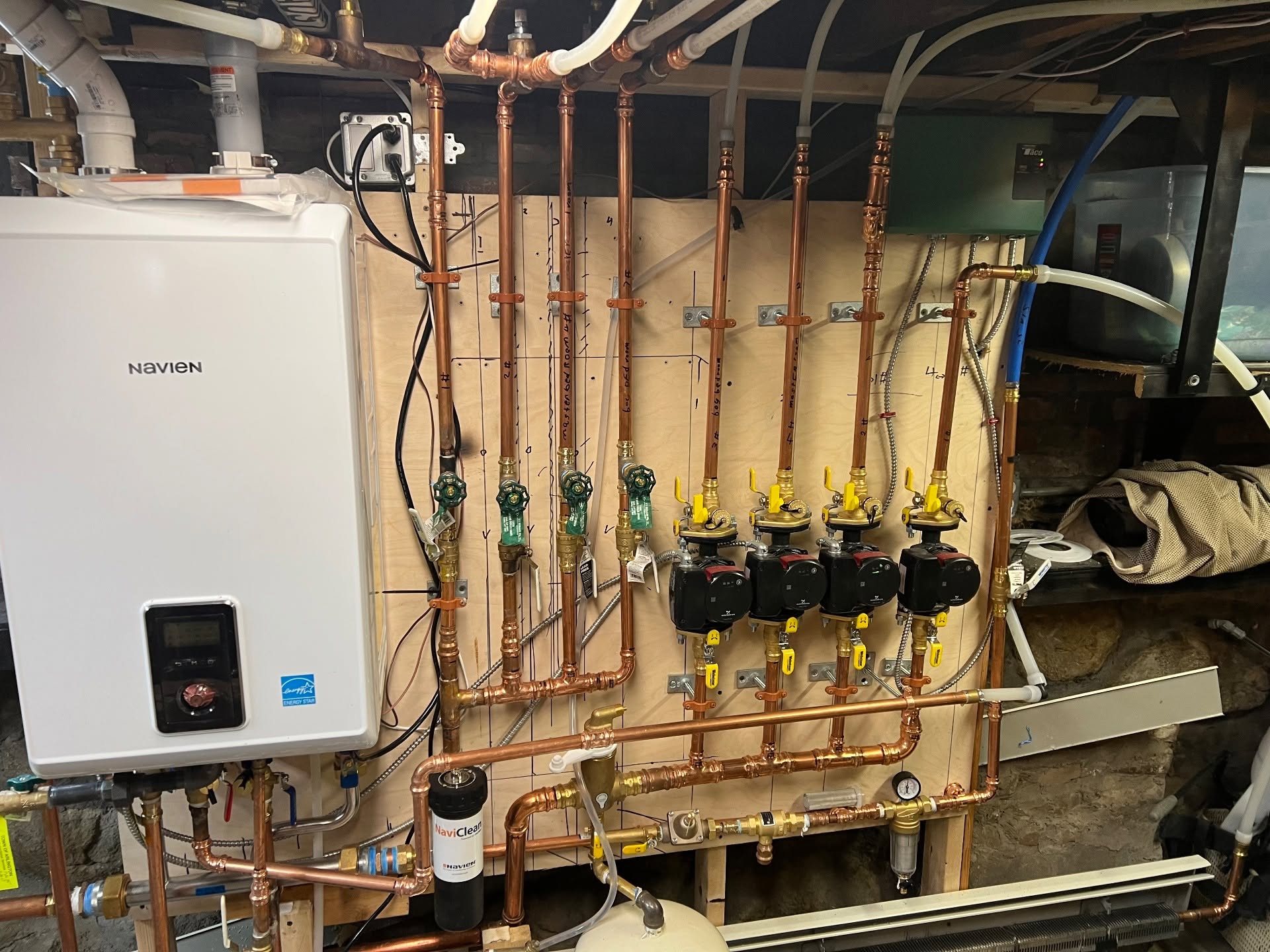

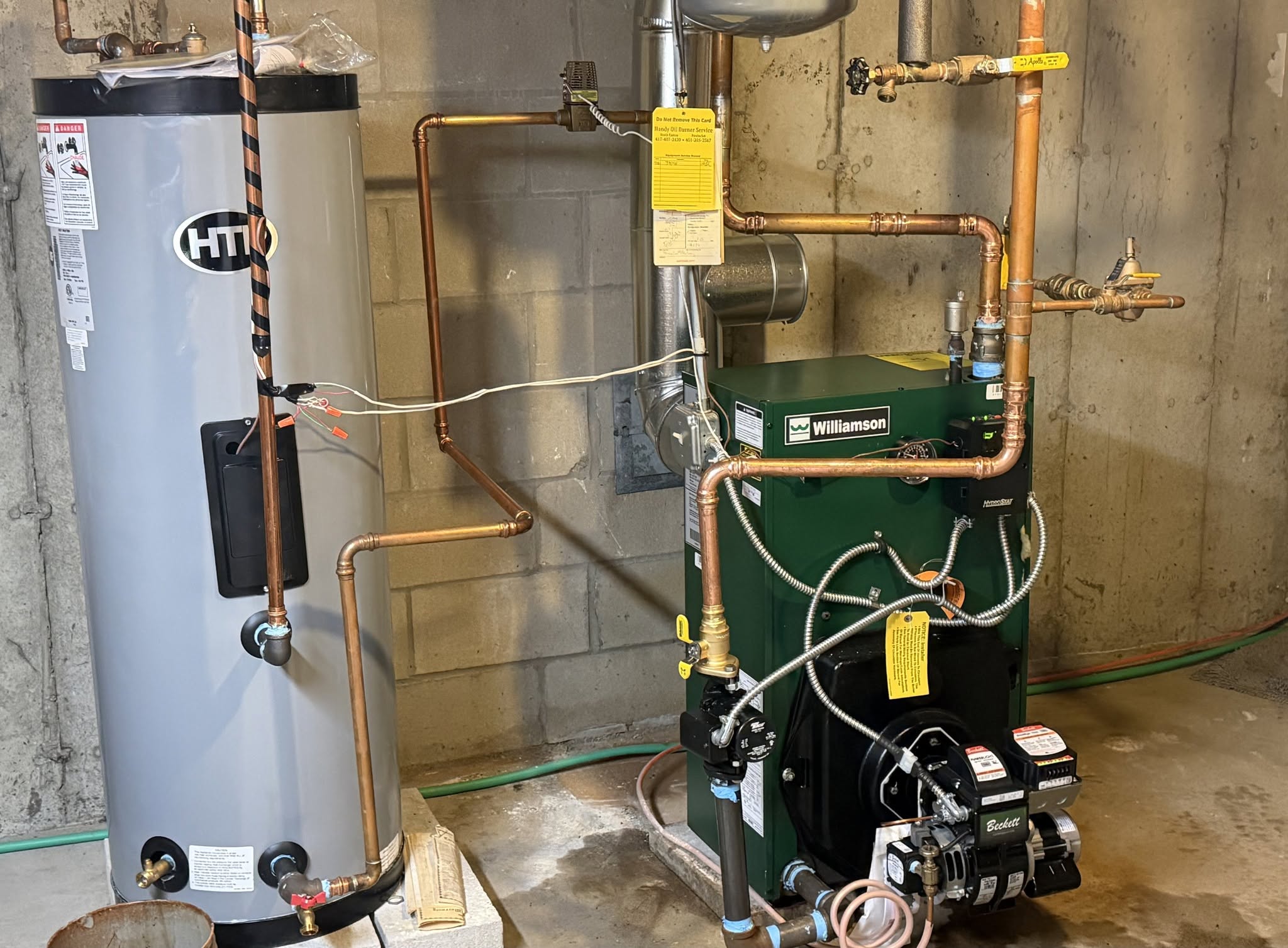

New green Williamson residential oil-fired cast-iron boiler equipped with Beckett flame retention oil burner, Hydrolevel Hydrostat temperature limit control, Taco circulator pump, and companion HTP indirect domestic hot water storage tank in a Massachusetts home
Oil Boiler & Indirect Water Heating
Worcester County, MAProject #10

Williamson Cast-Iron Oil Boiler with Beckett Burner & Indirect Tank

Complete residential oil heating plant installation featuring a green Williamson cast-iron boiler, high-performance Beckett oil burner with electronic primary control, Hydrolevel Hydrostat aquastat, and paired HTP (Heat Transfer Products) indirect water heater for high-volume domestic hot water.

Equipment & Piping Details

  • Williamson cast-iron oil boiler with heavy-duty thermal jacket
  • Beckett clean-burn oil burner with electronic primary control
  • Hydrolevel Hydrostat 3250-Plus temperature & low-water cutoff
  • HTP high-efficiency indirect hot water storage tank
  • Taco hydronic circulator pump & isolation shutoff valves
  • Galvanized flue smoke pipe with barometric draft regulator

Safety & Code Highlights

  • Massachusetts service inspection tags attached and signed
  • Emergency thermal Firomatic shutoff valve and electrical service switch
  • ASME pressure relief discharge piped safely toward floor
Need service on similar equipment?Call for Service: (508) 936-8957

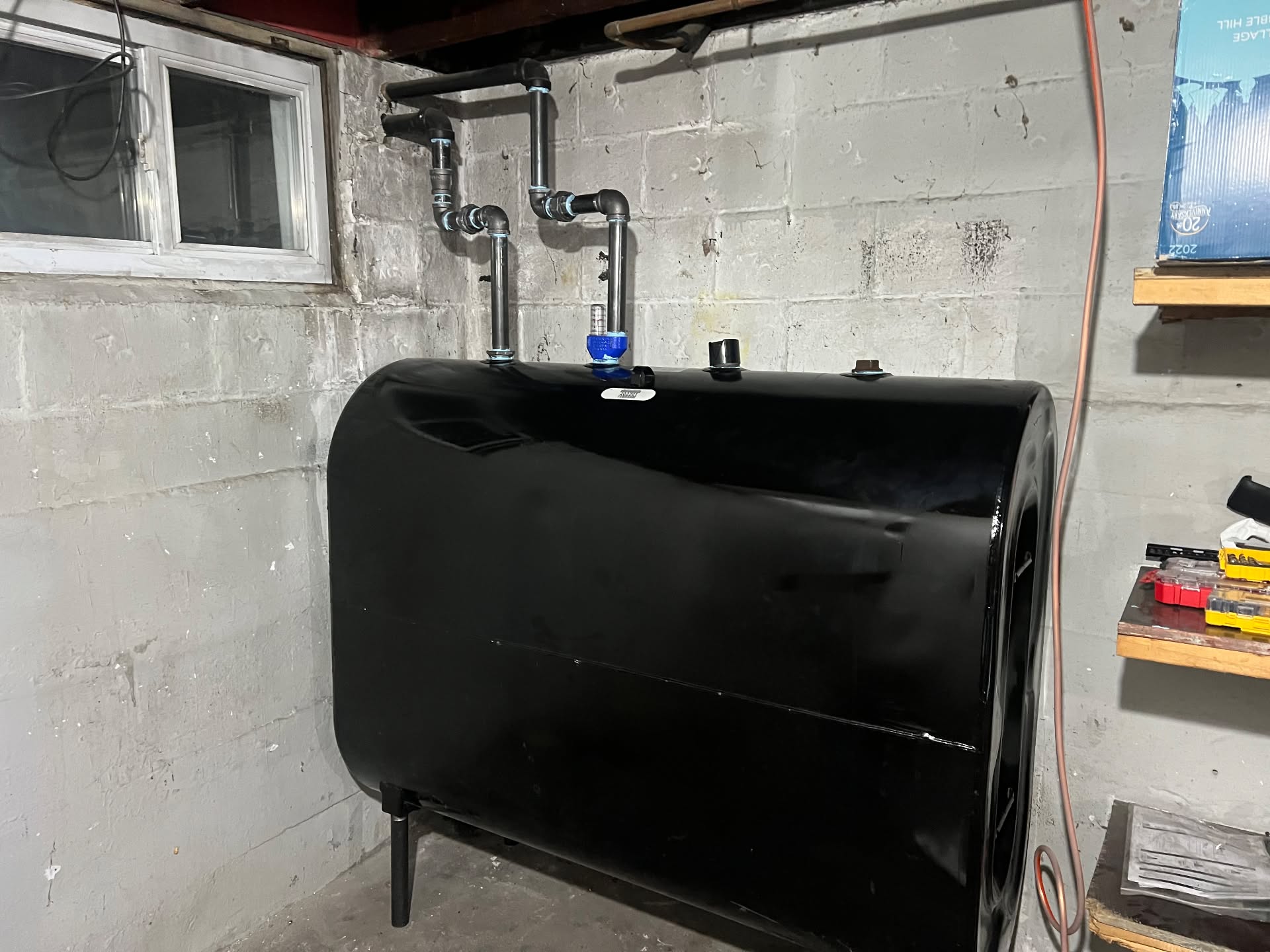

Black finish Granby residential heating oil storage tank installed in a concrete foundation basement with black-iron top vent and fill piping, visual float level gauge, and solid floor clearance
Fuel Storage & Piping
Worcester, MAProject #11

Granby Residential Heating Oil Storage Tank Installation

Clean basement fuel storage installation of a safety-rated black Granby heating oil tank against a concrete block basement wall. Equipped with black-iron vent pipe with whistle alarm, fill line, and top-mounted float oil gauge.

Equipment & Piping Details

  • Granby safety-rated residential heating oil storage tank
  • Heavy-gauge steel support legs with stable floor footing
  • Black-iron top fill pipe and vent pipe with alarm whistle
  • Visual float-type oil level fuel indicator gauge
  • Protected copper fuel feed line to burner

Safety & Code Highlights

  • Complies with Massachusetts 527 CMR 1.00 fuel storage regulations
  • Proper pitch verified for clean burner feed and water separation
  • Tested vent pipe alarm for safe oil delivery prevent-spill protection
Need service on similar equipment?Call for Service: (508) 936-8957

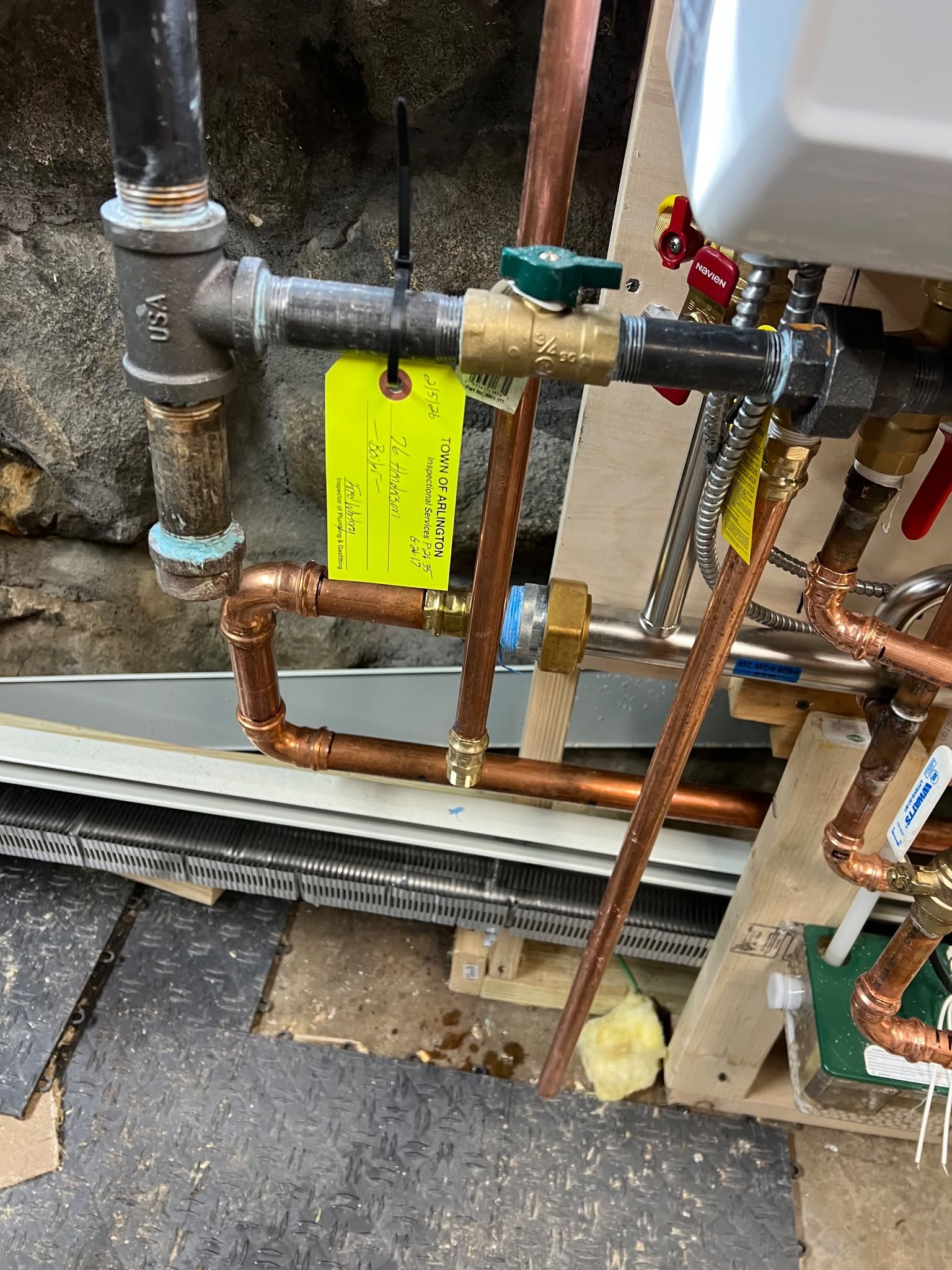

Close-up of municipal plumbing and heating inspection approval tag signed by licensed inspector on black-iron gas pipe manifold and copper boiler piping
Code Compliance & Permitting
Massachusetts Service AreaProject #12

Massachusetts Municipal Plumbing & Heating Code Inspection Approval

Verified municipal plumbing and heating fitting inspection sign-off tag on a boiler piping manifold. Demonstrates full compliance with Massachusetts safety codes, licensed contractor installation standards, and local building department inspection approvals.

Equipment & Piping Details

  • Heavy black-iron gas and fuel delivery piping with dirt pocket sediment leg
  • Quarter-turn gas ball shutoff valve with green handle
  • Rigid copper press hydronic piping with dielectric isolation unions
  • Pressure relief discharge piping properly terminated

Safety & Code Highlights

  • Official municipal inspection sign-off tag attached
  • Tested for gas and fuel pressure integrity and zero joint leaks
  • Compliant with Massachusetts fuel gas code and local bylaws
Need service on similar equipment?Call for Service: (508) 936-8957
